BLIND (POP)  RIVET  MAKING  PLANT  (High Speed)











(a) Automatic High Speed Double Stroke Cold Heading Machines

(b) Automatic Blind (Pop) Rivet Assembling Machines

(c) Automatic Wire Nail Making Machines (For Blind / Pop Rivet)

















DOUBLE  STROKE  COLD HEADING  MACHINES  (Automatic,  High Speed)











double stroke header, high speed Automatic Double Stroke Cold Heading Machines   Pop Rivet, Blind Rivet











FEATURES





  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.




  SPECIFICATION



Item Code No. Length Diameter Production
Per Minute
Motor H.P.
ABM-FM-6540 12 mm - 20 mm 2.5 mm - 4 mm 70 - 80  Pcs. 2  H.P.
ABM-FM-6541 20 mm - 25 mm 4 mm - 6 mm 65 - 70  Pcs. 3  H.P.



















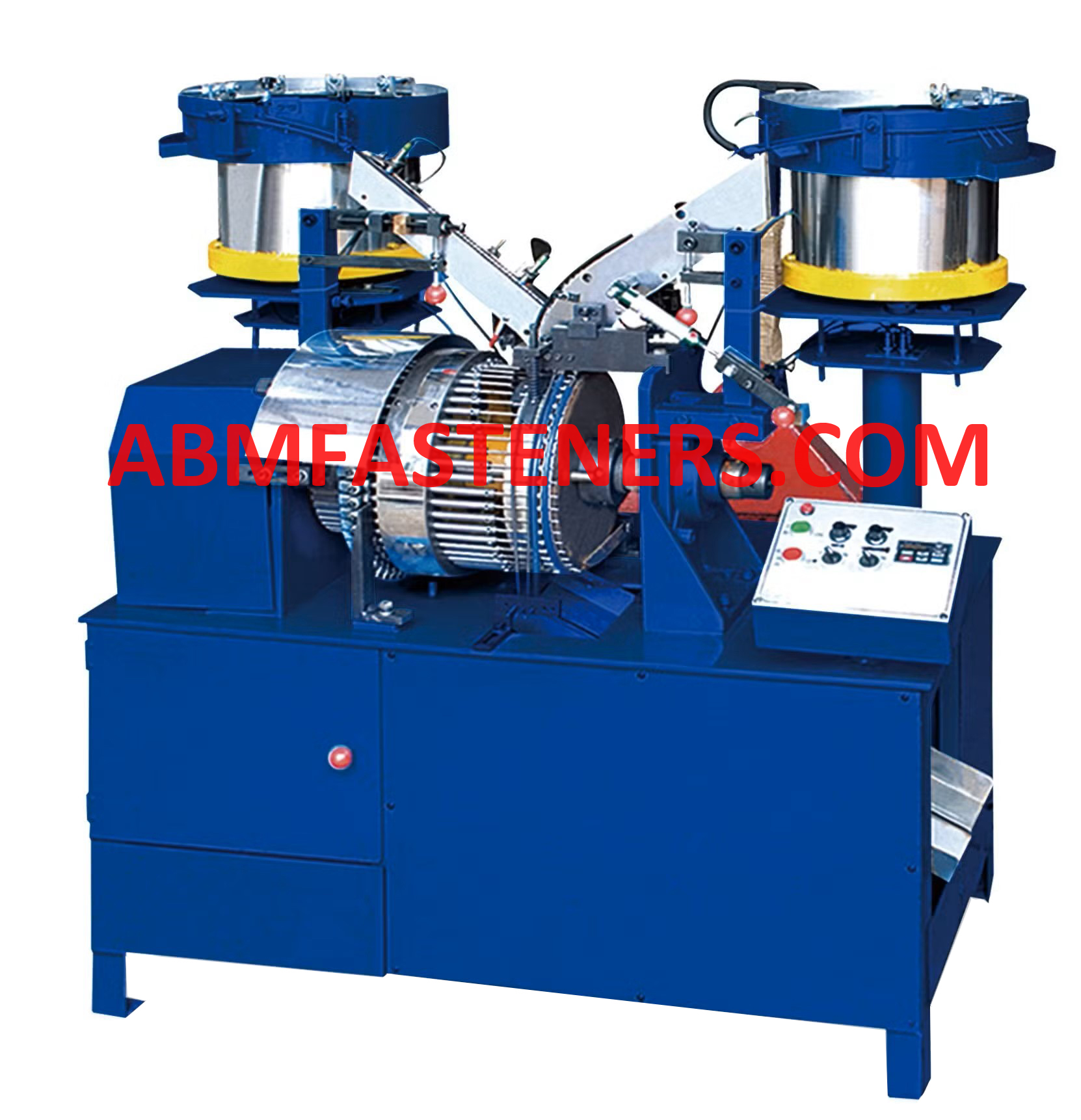

BLIND  (POP)  RIVET  ASSEMBLING  MACHINES  (Automatic,  High Speed)











automatic Blind Rivet assembling Machines high speed











FEATURES





  • Latest improved design for mass production and lower maintenance cost.

  • Machines are fitted with two hoppers, one feeds the rivets and second feeds the nails.

  • The function of the machine is to fit the nails into the rivets.




  SPECIFICATION



Item Code No. Length Diameter Production
Per Minute
Motor H.P.
ABM-FM-6550 12 mm - 20 mm 2.5 mm - 4 mm 120 - 130  Pcs. 3  H.P.
ABM-FM-6551 20 mm - 25 mm 4 mm - 6 mm 100 - 120  Pcs. 3  H.P.

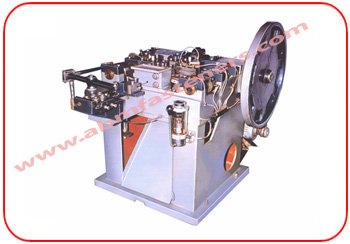

WIRE  NAIL  MAKING  MACHINES  (Automatic,  High Speed)
(For Pop Rivet / Blind Rivet)




  Wire Nail Making Machines for Pop Rivets or Blind Rivet

  FEATURES


CONSTRUCTION

ABM  TOOLS  Panel  Pin  &  Wire  Nails  making  machines  crank  type  are  made  from  high  grade  castings  and  steelMachines  ensure  perfect  sturdy  construction  and  long  life.



DRIVE

Three  shafts  design  has  been  adopted  to  ensure  efficient  smooth  workingThe  main  crank  is  direct  operated  by  motorThe  side  shafts  are  driven  by  four  bevel  gears,  which  operate  cutting  toolsThe  separate  shafts  for  cutting  ensure  correct  adjustment  of  tools.


BEARING

Main  crank  &  side  shafts  are  fitted  with  special  gun  metal  Bushes  to  ensure  long  lifeAll  the  Bushes  &  Lubricating  Points  are  provided  with  cup  type  oil  reservoirs.



WORKING  OF  MACHINE

The  wire  end  from  coil  passes  through  straightening  rollers  and  fed  intermittently  in  the  gripping  dies,  which  close  firmly  allowing  heading  punch  to  press  the  head  of  the  nails, then  grip  loosened  and  required  length  of  the  nail  is  fed  constantly,  where  it  is  cut  by  cutting  tools  leaving  ample  stock  for  the  head  of  the  next  nailThus  ready  nail  is  ejected  by  the  ejectorThe  operations  are  repeated  in  each  revolution.



WIRE  FEED

The  wire  feed  is  obtained  from  main  crank  shaftThe  desired  length  of  nail  is  easy  to  set  by  adjustment  bolt.



ACCESSORIES  FOR  THE  PLANT

Grinding  Machine,  Polishing  Drum  and  Spare  Dies,  etc.



  SPECIFICATION

Item Code No. ABM-FM-6572 ABM-FM-6573
Length of Nail 1/2" to 2"
(12 to 50 mm)
3/4" to 3"
(20 to 75 mm)
Thickness of Wire Gauge 1.6 to 2.6 mm
(16 to 12 SWG)
2 to 3.7 mm
(14 to 9 SWG)
Production Per Minute 300 to 350  Pcs. 225 to 275  Pcs.
Motor Required 2  H.P. x 1440 R.P.M. 3  H.P. x 1440 R.P.M.
Net Weight of Machine 500  Kg. 850  Kg.
Gross Weight of Machine 650  Kg. 1050  Kg.
Case Size 36" x 37" x 37" 47" x 56" x 42"









Solid Rivet Making Machines      Wire Nail Making Plant







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.

Manufactured by ABM Fasteners (India) and Export Marketing by ABM Tools
