HORSE  SHOE  NAIL  MAKING  MACHINES
(High Speed)





(a) Horse Shoe Nail  Making Machine
(b) Automatic Fabricator Machine
(c) Polishing Drum

(c) Tool and Cutter Grinder

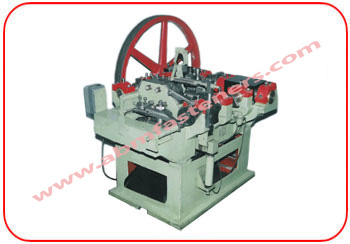

HORSE  SHOE  NAIL  MAKING  MACHINES  (High Speed)





Horse Shoe Nail Making Machines,fabricator machine,polishing drum,tool and cutter grinder manufacturer,Horse Shoe Nail making plant manufacturer,Horse Shoe nail making plant india,Horse Shoe nail making plant from india,abm fasteners,abm  Horse Shoe Nail



FEATURES

This machine is used to Forming Head and Stem.

SPECIFICATION

Item Code No. ABM-FM-6620 ABM-FM-6621
Size of Nail  (Length) No. 2 (1.5"), No. 3 (1.75"), No. 4 (2") & No. 5 (2.15") No. 2 (1.5"), No. 3 (1.75"), No. 4 (2"), No. 5 (2.15"),
No. 6 (2.35"), No. 7 (2.5")
Wire  Diameter 7  Gauge / SWG 7.6 & 5  Gauge / SWG
Production Capacity 90 Nail per Minute 70 Nail per Minute
Motor Required 7.5  H.P. 7.5  H.P.
Net Weight of Machine 2300  Kg. 2600  Kg.
Gross Weight of Machine 2800  Kg. 3200  Kg.

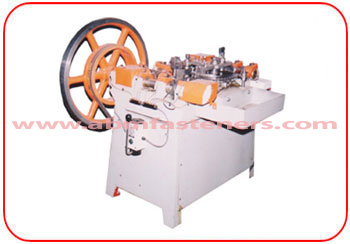

AUTOMATIC  FABRICATOR  MACHINE (For Point Cutting and Edge Chamfering)





Automatic Fabricator Machine, For Point Cutting and Edge Chamfering









FEATURES

For Point Cutting and Edge Chamfering.
SPECIFICATION
Item Code No. ABM-FM-6630 ABM-FM-6631
Size of Nail  (Length) No. 2 (1.5"), No. 3 (1.75"), No. 4 (2") & No. 5 (2.15") No. 2 (1.5"), No. 3 (1.75"), No. 4 (2"), No. 5 (2.15"),
No. 6 (2.35"), No. 7 (2.5")
Production Capacity 70 Nails per Minute 50 Nails per Minute
Motor Required 1  H.P. 2  H.P.
Net Weight of Machine 500  Kg. 850  Kg.
Gross Weight of Machine 600  Kg. 1000  Kg.








POLISHING  DRUM



polishing drum Single Barrel polishing Drum Double Barrel





FEATURES

This  drum  is  used  for  scouring  and  polishing  mass  produced  articles (Wire  Nails,  Sheet  Nails,  Buckets,  etc.).  The  nails  with  nippings  are  loaded  into  the  drums  and  suitable  quantity  of  saw  dust  and  leather  cutting  is  added.  Thereafter  they  are  tumbled  for  approximately  20 – 40  minutes  depending  on  the  dirt  accumulation  on  the  nails.  The  nippings  and  scouring  can  be  drawn  off  together  at  the  end  of  the  process,  if  the  machine  is  ordered  with  a  dust  filter  unit  with  an  exhauster.  Otherwise  the nails  can  be  separated  through  a  sieve  also.


SPECIFICATION
Item Code No. ABM-FM-6520 ABM-FM-6521
No. Of Drums Single Drum Double Drum
Output/ Charge 200 Kg. 400 Kg.
Batch Period (Min.) 30 - 40 30 - 40
Motor Required 2  H.P. 3  H.P.
Net Weight of Machine 500  Kg. 800  Kg.
Gross Weight of Machine 560  Kg. 900  Kg.















GRINDING  MACHINES





grinding machine





FEATURES

The  Grinding  Machine  is  specially  designed  to  sharpen  and  grinding  the  dies  and  cutters  of  the  machine.  It  is  fitted  with  four  grinding  wheels  of  different  shapes  and  special  attachments.

One  H.P. x 2600  R.P.M.  Motor  is  fitted  in  it.



SPECIFICATION

Item Code No. ABM-FM-6590
No of Grinding Wheels 4
Motor Required 1 H. P. x 2600 R.P.M.
Net Weight of Machine 150  Kg.
Gross Weight of Machine 180  Kg.







Shoe Tack Making Machines      Umbrella Nail Making Machines







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
