SPRING  MAKING  MACHINES
(Automatic  Spring  Making  Plant)

(a) Mechanical & CNC Spring Coiler (2 Axis to 5 Axis)
(b) CNC Spring Forming Machines (3 Axis to 8 Axis)

(c) CNC 2 Axis Garter Spring Coling Machine

(d) Mechanical Torsion Spring Coiler

(e) Mechanical Spring End Grinding Machine
(f)  Automatic Decoiler
(g) Electrical Tempering Ovens

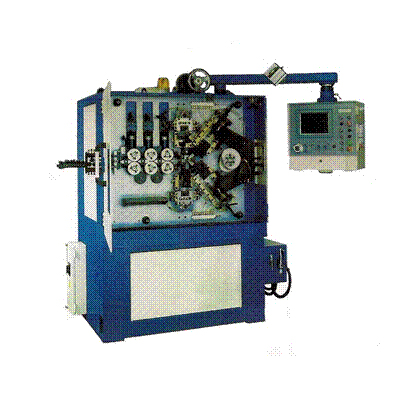

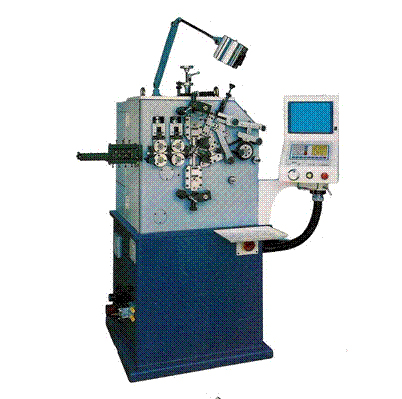

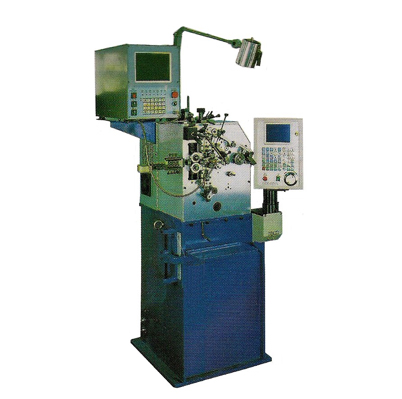

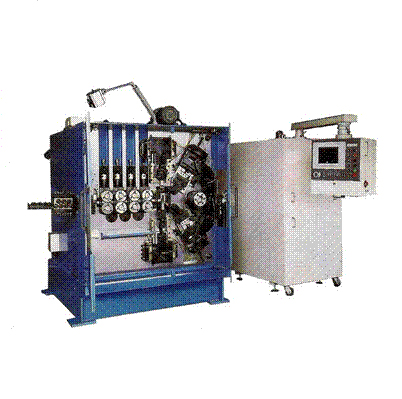

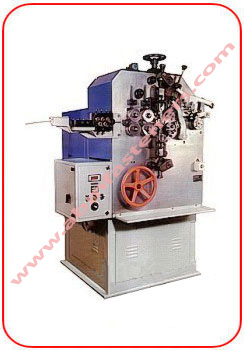

MECHANICAL & CNC SPRING COILER  (2 Axis to 5 Axis)

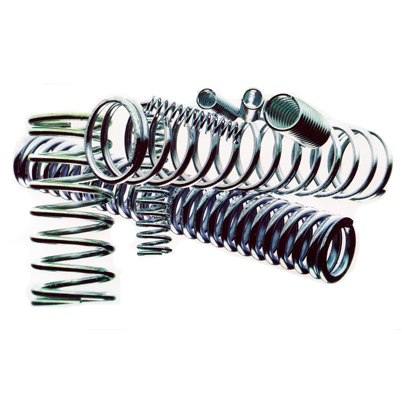

  Springs



STANDARD SERRO MOTOR


  FEED PITCH OD CENTER WEDGE TYPE PITCH
2 AXIS 1 1 -- -- --
4 AXIS 1 1 1 1 --
5 AXIS 1 1 1 1 1



  FEATURES
CNC 2 Axis to 5 Axis Spring  Coiling Machines

  • Servo Motors, Computer Controlled.

  • Synchronized Programming for High speed spring production.

  • A Micro pulse Hand Wheel is used to run every motor either in manual mode or auto mode for very easy setup and programming.

  • Easy to read color TPT-LCD Screen.

  • Standard security sensor and position sensor included.



SPECIFICATION
Item Code No. ABM-SM-8050 ABM-SM-8051 ABM-SM-8052 ABM-SM-8053
Wire Capacity (mm) 0.1 - 0.8 1 - 2.6 2 - 5 3 - 8
Max OD 10 mm 40 mm 60 mm 100 mm
Feed Roller Set 1 Set 2 Set 3 Set 4 Set
Max Production 100 Pcs. 60 Pcs. 40 Pcs. 30 Pcs.
Axis 2 2 4 5
Total Power Consumption 1.50 Kw 4 Kw 12 Kw 20 Kw

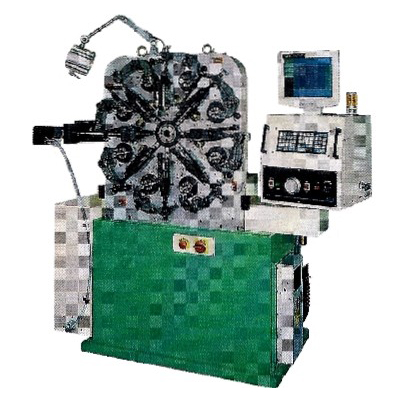

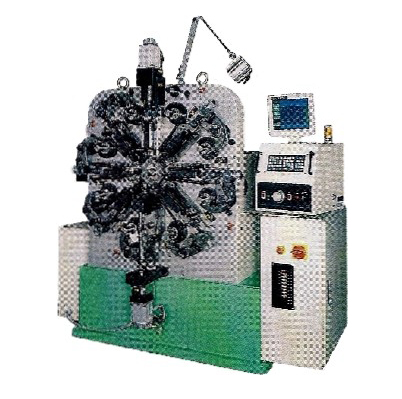

CNC SPRING FORMING MACHINE  (4 Axis to 8 Axis)










All Machine can be equipped with 4 Axis or 8 Axis Computer



  CAM FEED ROTATING
QUILL		 SERVO
WINDOR		 SERVO
SLIDE		 ROTATING
WIRE
4 AXIS 1 1 1 1 0 0
8 AXIS 1 1 1 2 2 --




FEATURES

  • On screen diagnostics shows alarm status and corrective action required.

  • Memory : CPU program capacity.

  • Cam angle and wire length display on monitor.

  • Safety interlock sensors are fitted to all slides.

  • Forward and reverse capability for all slides.

  • OD control is a standard feature.

  • Continuous rotation mode insures high speed production capacity.

  • A Micro Pulse Hand Wheel is used to run every motor in Manual Mode or Auto Mode for very easy setup and programming.

  • Easy to read on color TFT-LCD same space.

SPECIFICATION
Item Code No. ABM-SM-8060 ABM-SM-8061 ABM-SM-8062
Wire Capacity (mm) 0.6 - 1.6 1 - 3 2 - 5
Max OD 40 mm 50 mm 60 mm
Max Speed 40 Pcs. / Min 30 Pcs. / Min 25 Pcs. / Min

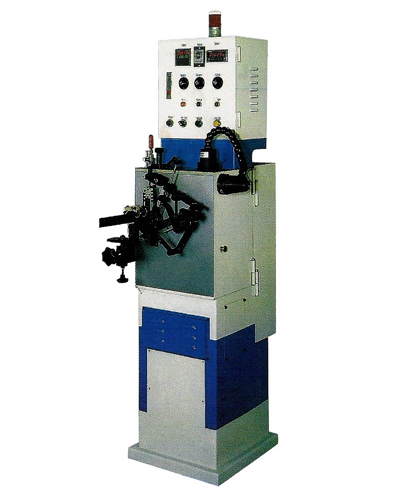

CNC 2 AXIS GARTER SPRING COILING  MACHINE







FEATURES

  • 2 Servo Motor. Computer Controlled.

  • Double OD cm design insures easy setup for spring Tip.

  • Standard security sensor and touching length control sensor included.

  • Easy to read color TFT-LCD    screen.

  • A motor pulse hand wheel is used to run.

STANDARD 2 SERVO MOTORS
Feed - 1  (0.75 Kw)  OD  and  Cutter - 1 (0.75 Kw)

Item Code No. ABM-SM-8070
Wire Axis 0.2 - 0.8 mm
Max OD 6 mm

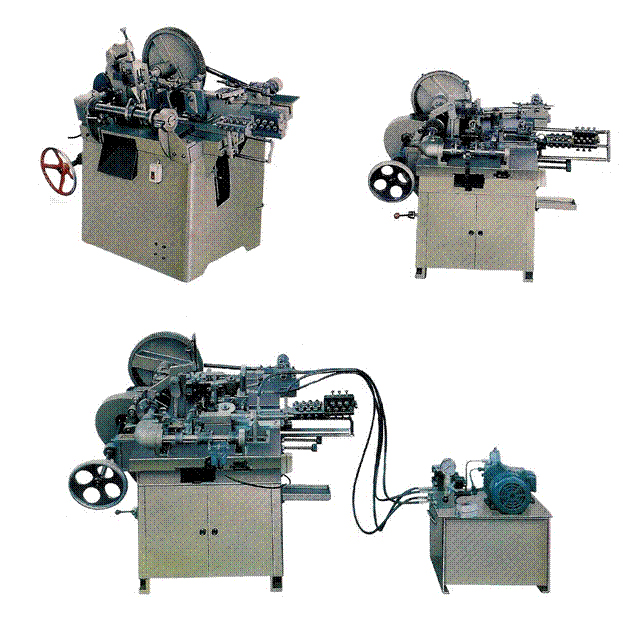

  MECHANICAL TORSION SPRING COILER




  SPECIFICATION

Item Code No. ABM-SM-8071 ABM-SM-8072 ABM-SM-8073
Wire Capacity (mm) 0.20 - 0.80 mm 1 - 2.6 mm 2 - 5 mm
Max OD 10 mm 40 mm 60 mm
Max Feed 250 mm 1000 mm 1500 mm
Power (Kw) 0.75 2 3
Max Wire Shank Both Side 30 mm 75 mm 100 mm

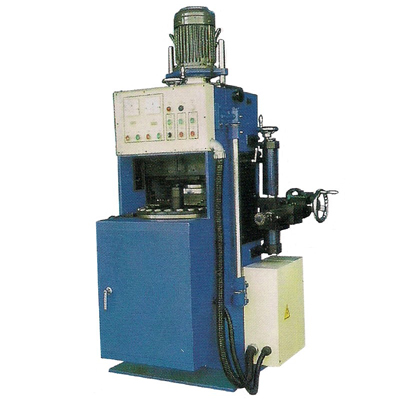

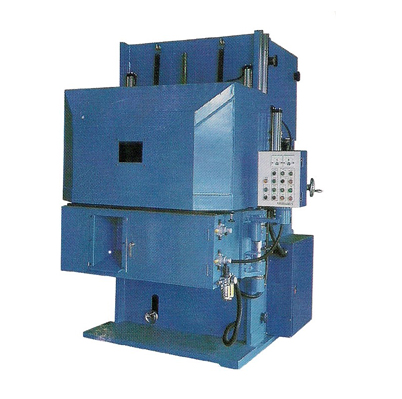

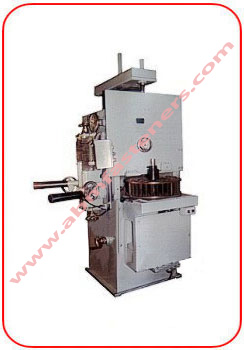

  MECHANICAL SPRING END GRINDING MACHINE





FEATURES




  • Crash Grinding.

  • Down Feed Grinding.

  • Horizontal / Vertical Stone Conversion.

  • Dry Grinding.



  SPECIFICATION

Item Code No. ABM-SM-8080 ABM-SM-8081 ABM-SM-8082
Wire Capacity (mm) 0.80 - 2.5 mm 2 - 6 mm 3 - 10 mm
Wheel Diameter 300 mm 450 mm 600 mm
Max Length 100 mm 200 mm 300 mm
Max Spring OD 40 mm 60 mm 100 mm
Total Power (Kw) 4.5 8.5 15

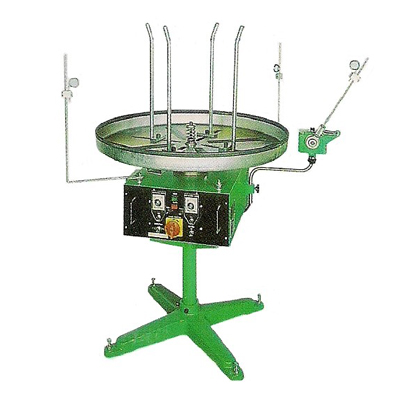

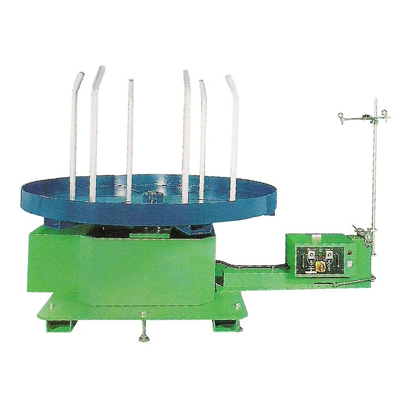

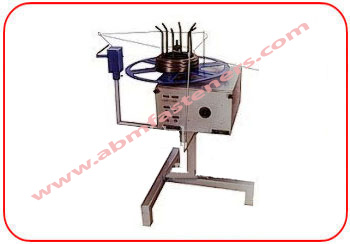

  AUTOMATIC  DECOILER





FEATURES




  • Suitable for both wire and Strip.

  • Adjustable Speed Control.

  • Payoff reel will detect and stop the machine when wire tangle. Break or run out.

  • Fitted with an emergency stop and buzzer alarm.



  SPECIFICATION

Item Code No. ABM-SM-8083 ABM-SM-8084 ABM-SM-8085 ABM-SM-8086
Max Wire 1.2 mm 3 mm 4 mm 6 mm
Diameter of Table 24 Inch 32 Inch 42 Inch 48 Inch
Max Load Table of Material 50 Kg. 100 Kg. 250 Kg. 500 Kg.
Max Speed  RPM 100 80 60 40

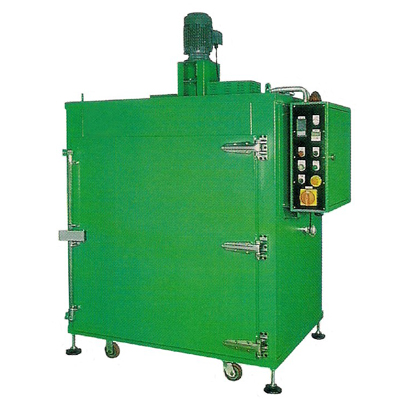

  ELECTRICAL  TEMPERING  OVENS





FEATURES




  • Max 400 C.

  • Alarm System.

  • Solid Steel Relay (SSR)  ON / OFF Heating Control.

  • PID Temp. Controller.

  • 100 minute Timer.





BENEFITS




  • Shut down power automatically for safety.

  • Provide high efficiency heat control.

  • Insure uniform and accurate temperature.

  • Blower system.



  SPECIFICATION

Item Code No. ABM-SM-8090 ABM-SM-8091
Max Temp (C) 400 400
Electric Load 5 Kw 10 Kw
No. of Trays 3 6
Inside Diameter 18 x 18 x 24 36 x 36 x 42
Outside (Inches) 30 x 30 x 42 48 x 48 x 54








Bicyle Spoke Machine      Multi Station Header





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
