HYDRAULIC  THREAD  ROLLING  MACHINES



(a) Hydraulic Thread Rolling Machines (Two Roll Type)
(b) Hydraulic Thread Rolling Machines (Three Roll Type)

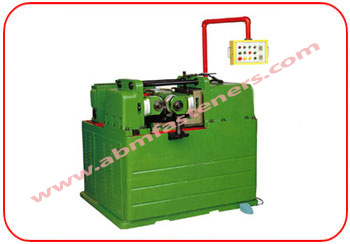

HYDRAULIC  THREAD  ROLLING  MACHINE  (Two  Roll  Type)



hydraulic thread rolling machine,hydraulic thread rolling machine manufacturer,Two roll hydraulic thread rolling machine,three roll hydraulic thread rolling machine,hydraulic thread rolling india,hydraulic thread rolling from india,abm fasteners,abm   Hydraulic Thread Rolling



FEATURES



  • Powerful construction permits deep forming of threads, worms, serration knurls.

  • Rigidity & Simplicity : Grade - 1 Casted Hardened and duly scrapped slide also the easy adjustment of machine as well as toolings enables an unskilled labourer to operate the machine.

  • Machine is very much suitable for mass production and best surface finishes.



SPECIFICATION

Item Code No.

 ABM-FM-6990 ABM-FM-6991 ABM-FM-6992 ABM-FM-6993
Max. Pitch Can be Rolled 1.5 mm 2.5 mm 3 mm 3.5 mm
Max. Dia. can be Rolled Infeed 15 mm 25 mm 30 mm 40 mm
Through Feed 7 mm 12 mm 20 mm 25 mm
Max. Rolling Length Infeed 50 mm 80 mm 100 mm 100 mm
Through Feed Indefinite Indefinite Indefinite Indefinite
Max. Outer Dia. T. Rolls 100 mm 160 mm 160 mm 180 mm
Spindle Dia. (Bore Dia.) 28 mm 54 mm 54 mm 54 mm
Max. Width T. Rolls 50 mm 100 mm 100 mm 100 mm
Maximum Rolling Force 5 Tons 10 Tons 10 Tons 12 Tons
Motor for Roll Spindles 1.5 H.P. / 1440 RPM 3 H.P. / 1440 RPM 3 H.P. / 1440 RPM 5 H.P. / 1440 RPM
Motor for Hydraulic Pump 1 H.P. / 1440 RPM 2 H.P. / 1440 RPM 3 H.P. / 1440 RPM 3 H.P. / 1440 RPM
Motor for Coolant Pump 0.1 H.P. / 3000 RPM 0.1 H.P. / 3000 RPM 0.1 H.P. / 3000 RPM 0.1 H.P. / 3000 RPM

Item Code No.

 ABM-FM-6994 ABM-FM-6995 ABM-FM-6996
Max. Pitch Can be Rolled 4 mm 5 mm 5.5 mm
Max. Dia. can be Rolled Infeed 50 mm 80 mm 100 mm
Through Feed 30 mm 40 mm 50 mm
Max. Rolling Length Infeed 150 mm 150 mm 150 mm
Through Feed Indefinite Indefinite Indefinite
Max. Outer Dia. T. Rolls 180 mm 180 mm 100 mm
Spindle Dia. (Bore Dia.) 54 mm 54 / 69.85 mm 69.85 mm
Max. Width T. Rolls 150 mm 150 mm 150 mm
Maximum Rolling Force 15 Tons 24 Tons 30 Tons
Motor for Roll Spindles 7.5 H.P. / 1440 RPM 10 H.P. / 1440 RPM 12.5 H.P. / 1440 RPM
Motor for Hydraulic Pump 5 H.P. / 1440 RPM 7.5 H.P. / 1440 RPM 7.5 H.P. / 1440 RPM

Motor for Coolant Pump

 0.1 H.P. / 3000 RPM 0.1 H.P. / 3000 RPM 0.1 H.P. / 3000 RPM

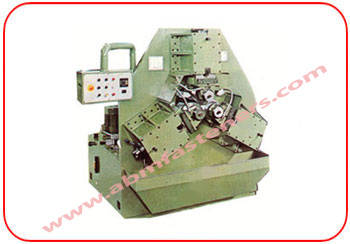

HYDRAULIC  THREAD  ROLLING  MACHINE  (Three  Roll  Type)



hydraulic thread rolling machine,hydraulic thread rolling machine manufacturer,Two roll hydraulic thread rolling machine,three roll hydraulic thread rolling machine,hydraulic thread rolling india,hydraulic thread rolling from india,abm fasteners,abm



FEATURES



  • The 3 rollers H-3 R rolling machines operate hydraulically. The simultaneously and concentricity of three forces at 120 degree assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the piece.

  • The elimination of the support blade consents a better finishing of the piece and execution of particularly delicate profiles.

  • This machine is suitable for rolling pipes, lapping work, threading with as high class precision and for mass production.



SPECIFICATION

Item Code No.

 ABM-FM-7000 ABM-FM-7001
Max. Dia. 50 mm 30 mm
Min. Dia 20 mm 15 mm
Max. Pitch 2.5 mm 1.75 mm
Spindle Dia. 40 mm 40 mm
Max. Length of Thread 75 mm 50 mm
