STAPLE  PIN  MAKING  MACHINES  (Automatic) (Multiwire)



Automatic Multiwire Staple Pin Making Machines   Staple Pins



FEATURES

  • Suitable for manufacturing staple pins with 5 wire intake.

  • One Set of Die is included with the machine either No. 10 or 24/6 as desired by customer along with Wire Stand & Auto Cutting attachment.

SPECIFICATION

Item Code No. ABM-FM-6690
Wire Dia. S.W.G. 0.45 to 0.6 mm
Size of Pins No 10 or 24/6
Maximum Clips Per Minute 1400 to 1500 Pcs.
Raw Material Required Mild Steel Wire (S.S. Coated or Galvanized)
Wire Intake 5 Wires
Power Required 1.5 H.P.
Area Required 5' x 15'




  STAPLE  PIN  MAKING  MACHINES  (Automatic) (Single Wire)

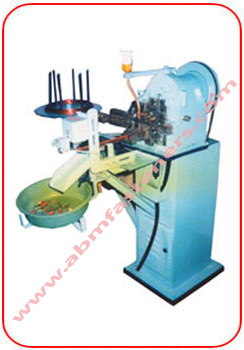

  Automatic Staple Pin Making Machines   Staple Pins

  FEATURES


  • Suitable for manufacturing staple pins with intake single wire.

  • One Set of Die is included with the machine either No. 10 or 24/6 as desired by customer along with Wire Stand & Auto Cutting attachment.



  SPECIFICATION


Item Code No. ABM-FM-6690a
Wire Dia. S.W.G. 0.45 to 0.6 mm
Size of Pins No 10 or 24/6
Maximum Clips Per Minute 300 to 350 Pcs.
Raw Material Required Mild Steel Wire (S.S. Coated or Galvanized)
Wire Intake 1 Wires
Power Required 1 H.P.
Area Required 4' x 7'








Gem Clip Making Machine      Taper Roller Bearing Plant





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
