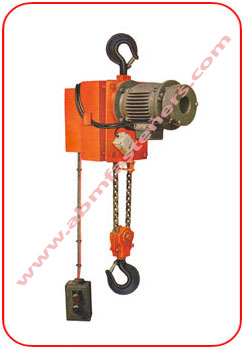

ELECTRIC CHAIN HOIST |
|
|
Download Catalogue (PDF) |
|
|
|
|
|
|
|
|
|
|
|
DESIGN |
|
|
|
|
|
|
|
|
CONSTRUCTION |
|
|
|
|
|
|
|
|
FRAME |
|
|
|
|
|
|
|
|
GEAR BOX |
|
|
-
Totally enclosed gear
box with gears made from EN-9 / EN-24, steel and teethed on
precision Hobbing machines, hardened & Tempered.
-
The gears are
lubricated with high viscosity grease and need no further
lubrication.
|
|
|
|
|
|
ELECTRIC MOTOR |
|
|
-
3 Phase, 440 Volt,
A.C. 50 Cycles, Squirrel Cage Induction
Motor, normally of "SIEMENS" or "NGEF"
make is used.
|
|
|
|
|
|
LOAD CHAIN |
|
|
|
|
|
|
|
|
BRAKE |
|
|
|
|
|
|
|
|
UNIT SWITCH |
|
|
|
|
|
|
|
|
CONTROL PANEL |
|
|
-
Totally enclosed dust
and moisture proof panel housing with components of standard makes
like 'SIEMENS / L&T, BCH, Telemechanique etc., provides control at
low voltage for safety of operation.
|
|
|
|
|
|
HOOK |
|
|
|
|
|
|
|
|
TEST |
|
|
|
|
|
|
|
|
TECHNICAL DATA |
|
|
Item Code No. |
ABM-MH-6200 |
ABM-MH-6201 |
ABM-MH-6202 |
ABM-MH-6203 |
CAPACITY IN KG. |
500 |
1000 |
2000 |
3000 |
NO. OF FALL |
1 |
1 |
2 |
2 |
HOISTING SPEED MTR / MIN |
5 |
5 |
2.5 |
2 |
MOTOR (H.P.) |
0.75 |
1.5 |
1.5 |
2 |
DIMENSION IN MM |
|
|
|
|
A |
750 |
775 |
780 |
930 |
B |
250 |
250 |
250 |
300 |
C |
550 |
570 |
575 |
670 |
|
|
|
|
|
|
|
|
